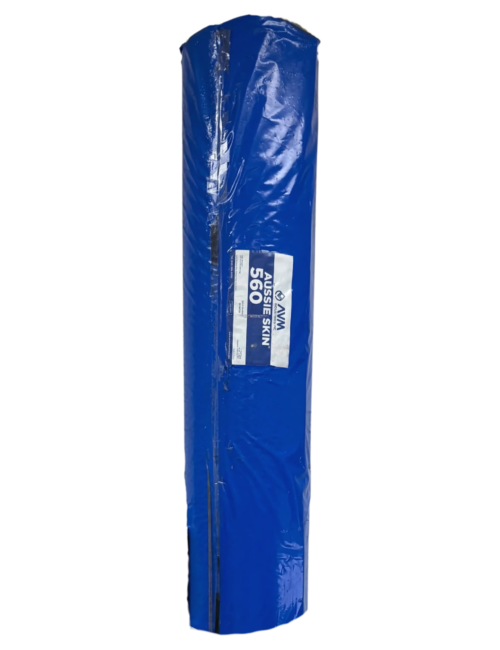

Aussie Skin 560G

Aussie Skin 560G

Aussie Skin 560G is a heavy-duty, pre-applied 2.0 mm thick waterproofing membrane designed for methane resistance and shotcrete applications. This robust HDPE sheet membrane is engineered for easy installation and superior puncture resistance. Advanced technologies enable exceptional adhesion between the membrane and wet concrete or shotcrete. Once cured, the membrane forms a fully bonded seal to the concrete surfaces, effectively preventing water migration between the membrane and the concrete.

Where to Use

  • Retaining walls
  • Shotcrete walls
  • Basements
  • Under-slabs
  • Mud-slabs
  • Methane and VOC Systems
  • Permanent formwork (e.g., lagging)
  • Existing back-filled structural walls
  • Smoothly prepared concrete substrates
  • Compacted earth or crushed stone substrates

Key Features

  • Permanent Bond to Concrete — Ensures a continuous waterproofing barrier by forming an integral bond with poured concrete.
  • Puncture Resistant — Durable HDPE layer withstands construction-related stresses and protects against damage.
  • Easy Installation — Designed for straightforward application, reducing labor time and costs.
  • Cost-Effective System — Provides long-term waterproofing protection at a competitive price.

Material

  • Sheet Product (Pre-applied HDPE membrane)

System

  • Pre-Applied Below-Grade Waterproofing System

Installation

Documents

  • Approvals

    • Technical Data Sheet

    Safety Data Sheet
  • Specifications
  • Details
    • 0560G – View-ALL (PDF)
    • 0560G – Aussie Skin 560G Methane – View-ALL (PDF)

    Post Applied Walls

    • 0550G_0560G.0002 – Slab on Grade Over Aussie Skin, Concrete Walls 500_502 (DWG) (PDF)
    • 0550G_0560G.0004 – Slab on Grade with Footing Over Aussie Skin, Concrete Walls Aussie Mate (DWG) (PDF)
    • 0550G_0560G.0006 – Slab on Grade Over Aussie Skin, Concrete Walls 520 (DWG) (PDF)
    • 0550G_0560G.0008 – Slab on Grade Over Aussie Skin CMU Block Walls 500_502 (DWG) (PDF)
    • 0550G_0560G.0010 – Slab on Grade Over Aussie Skin CMU Block Walls 520 (DWG) (PDF)
    • 0550G_0560G.0012 – Slab on Grade Over Aussie Skin Concrete Walls Minimal Exposed Footing 500_502 (DWG) (PDF)
    • 0550G_0560G.0014 – Slab on Grade Over Aussie Skin Concrete Walls Minimal Exposed Footing 520 (DWG) (PDF)
    • 0550G_0560G.0016 – Elevated Slab Over Aussie Skin Concrete Walls 500_502 (DWG) (PDF)
    • 0550G_0560G.0018 – Elevated Slab Over Aussie Skin Concrete Walls 520 (DWG) (PDF)
    • 0550G_0560G.0020 – Elevated Slab Over Aussie Skin, Concrete Walls Aussie Mate (DWG) (PDF)
    • 0550G_0560G.0022 – Aussie Membrane Installation Over Aussie Skin (DWG) (PDF)

    Slab Wall Transition

    • 0550G_0560G.1200 – Typical Lagging Wall (DWG) (PDF)
    • 0550G_0560G.1210 – Blindside Lagging Slab to Wall Transition (DWG) (PDF)
    • 0550G_0560G.1212 – Blindside Lagging Slab to Wall Transition, Insulation (DWG) (PDF)
    • 0550G_0560G.1220 – Lagging Wall with Rock Pocket (DWG) (PDF)
    • 0550G_0560G.1224 – Raised Slab Non-Hydrostatic (DWG) (PDF)
    • 0550G_0560G.1225 – Raised Slab, Shotcrete Retaining Wall, Non-Hydrostatic (DWG) (PDF)
    • 0550G_0560G.1228 – Raised Slab with Vapor Barrier (DWG) (PDF)
    • 0550G_0560G.1229 – Transition to Vapor Barrier Underslab (DWG) (PDF)
    • 0550G_0560G.1230 – Mat Slab with Underslab Drainage (DWG) (PDF)
    • 0550G_0560G.1240 – Typical Metal Sheet Pile Retaining Wall (DWG) (PDF)
    • 0550G_0560G.1242 – Typical Shotcrete Retaining Wall (DWG) (PDF)
    • 0550G_0560G.1244 – Sheet Pile Retaining Wall (DWG) (PDF)
    • 0550G_0560G.3000 – Elevator Pit Over Aussie Skin (DWG) (PDF)

    Tie Back & Soldier Piles

    • 0550G_0560G.1530 – Metal Tie-Back Cover (DWG) (PDF)
    • 0550G_0560G.1531 – Detensioned Tie-Back (DWG) (PDF)
    • 0550G_0560G.1532 – 4 Inch Tie-Back Cover (DWG) (PDF)
    • 0550G_0560G.1533 – 6 Inch Tie-Back Cover (DWG) (PDF)
    • 0550G_0560G.1534 – 8 Inch Tie-Back Cover (DWG) (PDF)
    • 0550G_0560G.1535 – Detensioned Tie-Back – Option 2 (DWG) (PDF)
    • 0550G_0560G.1536 – Wall Pipe Raker (DWG) (PDF)
    • 0550G_0560G.1537 – Wall I-Beam Raker (DWG) (PDF)
    • 0550G_0560G.1540 – Back Lagged Soldier Pile (DWG) (PDF)
    • 0550G_0560G.1542 – Mid Lagged Soldier Pile (DWG) (PDF)
    • 0550G_0560G.1544 – Cement Board at Grade (DWG) (PDF)

    Grade Beams & Pile Caps

    • 0550G_0560G.2610 – Pile Cap Detail – Hydrostatic (DWG) (PDF)
    • 0550G_0560G.2615 – Extended Pile Cap Detail – Hydrostatic Option 2 (DWG) (PDF)
    • 0550G_0560G.2630 – Pile Cap Detail – Non-Hydrostatic (DWG) (PDF)
    • 0550G_0560G.2550 – Aussie Skin Over Grade Beam – Non-Hydrostatic (DWG) (PDF)
    • 0550G_0560G.2540 – Aussie Skin Over Grade Beam – Hydrostatic (DWG) (PDF)
    • 0550G_0560G.2500 – Aussie Skin Under Grade Beam – Hydrostatic (DWG) (PDF)

    Penetrations

    • 0550G_0560G.2800 – Pipe Raker in Slab (DWG) (PDF)
    • 0550G_0560G.2802 – Aussie Skin Pipe Bank Pitch Pan (DWG) (PDF)
    • 0550G_0560G.2804 – Slab Penetration (Single) (DWG) (PDF)
    • 0550G_0560G.2806 – Well Pipe Sealing Boxout (DWG) (PDF)
    • 0550G_0560G.2808 – Slab Tie Penetration (DWG) (PDF)
    • 0550G_0560G.2810 – Aussie Skin Underslab Repair (DWG) (PDF)
    • 0550G_0560G.4000 – Through Wall Penetration (Single System, Sealant on Sanded Side) (DWG) (PDF)
    • 0550G_0560G.4002 – Multiple Through Wall Penetrations (Single System, Sealant on Sanded Side) (DWG) (PDF)
    • 0550G_0560G.4003 – Vertical Pitch Pan (Pre-Applied) (DWG) (PDF)
    • 0550G_0560G.4004 – Vertical Pitch Pan (Post-Applied) (DWG) (PDF)
    • 0550G_0560G.4005 – Sleeved Pipe Penetration (DWG) (PDF)
    • 0550G_0560G.4010 – Cored Penetration (Sealant on HDPE Side) (DWG) (PDF)
    • 0550G_0560G.4015 – Cored Penetration (DWG) (PDF)

    Laps, Fasteners & Corners

    • 0550G_0560G.4100 – Rebar Tie (DWG) (PDF)
    • 0550G_0560G.4102 – Eye Lag Screw (DWG) (PDF)
    • 0550G_0560G.4200 – Non-Flush Fastener (DWG) (PDF)
    • 0550G_0560G.4205 – Nail Screw Detail (DWG) (PDF)
    • 0550G.6000 – Factory Lap Detailing (DWG) (PDF)
    • 0550G.6002 – Non-Factory Lap Detailing (DWG) (PDF)
    • 0550G.6004 – Non-Factory Lap with Detail Strip (DWG) (PDF)
    • 0550G_0560G.6005 – Lapping Detail with Aussie Seal M and Sanded Tape (DWG) (PDF)
    • 0550G_0560G.6006 – Factory Laps in Shotcrete Hydrostatic (DWG) (PDF)
    • 0550G_0560G.6007 – Non-Factory Laps in Shotcrete Hydrostatic (DWG) (PDF)
    • 0550G_0560G.6008 – Non-Factory Laps in Shotcrete Hydrostatic (Heat) (DWG) (PDF)
    • 0550G_0560G.6010 – T-Lap Detail (DWG) (PDF)
    • 0550G.6015 – Standard Overlap Spacing (DWG) (PDF)
    • 0550G_0560G.6020 – Under Slab Assembly (DWG) (PDF)
    • 0550G_0560G.6200 – Inside Corner Detail (DWG) (PDF)
    • 0550G_0560G.6210 – Inside Corner (DWG) (PDF)
    • 0550G_0560G.6260 – Outside Corner Detail at Bottom of Wall (DWG) (PDF)
    • 0550G_0560G.6265 – Outside Corner Detail at Top of Wall (DWG) (PDF)
    • 0550G_0560G.8002 – Repair Procedure for Large Areas (DWG) (PDF)
    • 0550G_0560G.8004 – Repair Procedure for Cuts and Slices (DWG) (PDF)

    Transitions & Terminations

    • 0550G_0560G.7000 – Grade Transition to Aussie Mate (DWG) (PDF)
    • 0550G_0560G.7010 – Aussie Skin Lagging to Aussie Mate Free Standing (DWG) (PDF)
    • 0550G_0560G.7020 – Aussie Skin Installation Over Aussie Membrane 500 / 502 / 520 (DWG) (PDF)
    • 0550G_0560G.7022 – Aussie Skin Underslab Transition to Aussie Mate – Option 1 (DWG) (PDF)
    • 0550G_0560G.7024 – Aussie Skin Underslab Transition to Aussie Mate – Option 2 (DWG) (PDF)
    • 0550G_0560G.7500 – Termination at Grade – Option 1 (DWG) (PDF)
    • 0550G_0560G.7505 – Termination at Grade – Option 2 (DWG) (PDF)

    Aussie Clay 560 Dual System

    • 0550G_0560G – Aussie Dual System – View ALL (PDF)
    • 0550G_0560G-1226AC – Aussie Dual System – Raised Slab Slab Underslab Drainage Full Wrap (DWG) (PDF)
    • 0550G_0560G-1200AC – Aussie Dual System – Typical Lagging Wall (DWG) (PDF)
    • 0550G_0560G-1212AC – Aussie Dual System – Over Lagging (DWG) (PDF)
    • 0550G_0560G-1214AC – Aussie Dual System – Over Concrete (DWG) (PDF)
    • 0550G_0560G-1220AC – Aussie Dual System – Over Lagging Rock Pocket (DWG) (PDF)
    • 0550G_0560G-1221AC – Aussie Dual System with Aussie Clay Underslab – Rock Pocket (DWG) (PDF)
    • 0550G_0560G-1530AC – Aussie Dual System – Metal Tie Back Cover (DWG) (PDF)
    • 0550G_0560G-1531AC – Aussie Dual System – Detensioned Tie Back (DWG) (PDF)
    • 0550G_0560G-1532AC – Aussie Dual System – 4 Inch Tie Back Cover (DWG) (PDF)
    • 0550G_0560G-1533AC – Aussie Dual System – 6 Inch Tie Back Cover (DWG) (PDF)
    • 0550G_0560G-1534AC – Aussie Dual System – 8 Inch Tie Back Cover (DWG) (PDF)
    • 0550G_0560G-1536AC – Aussie Dual System – Wall Pipe Raker (DWG) (PDF)
    • 0550G_0560G-1540AC – Aussie Dual System – Back Lagged Soldier Pile (DWG) (PDF)
    • 0550G_0560G-1544AC – Aussie Dual System – Cement Board at Grade (DWG) (PDF)
    • 0550G_0560G-4000AC – Aussie Dual System – Penetration Through Wall (DWG) (PDF)
    • 0550G_0560G-4002AC – Aussie Dual System – Multiple Penetrations Through Wall (DWG) (PDF)
    • 0550G_0560G-4005AC – Aussie Dual System – Sleeved Pipe Penetration (DWG) (PDF)
    • 0550G_0560G-4010AC – Aussie Dual System – Cored Penetration (Sealant on HDPE Side) (DWG) (PDF)
    • 0550G_0560G-4100AC – Aussie Dual System – Rebar Tie (DWG) (PDF)
    • 0550G_0560G-7502AC – Aussie Dual System – Grade Termination 01 (DWG) (PDF)
    • 0550G_0560G-7505AC – Aussie Dual System – Grade Termination 02 (DWG) (PDF)

Gallery

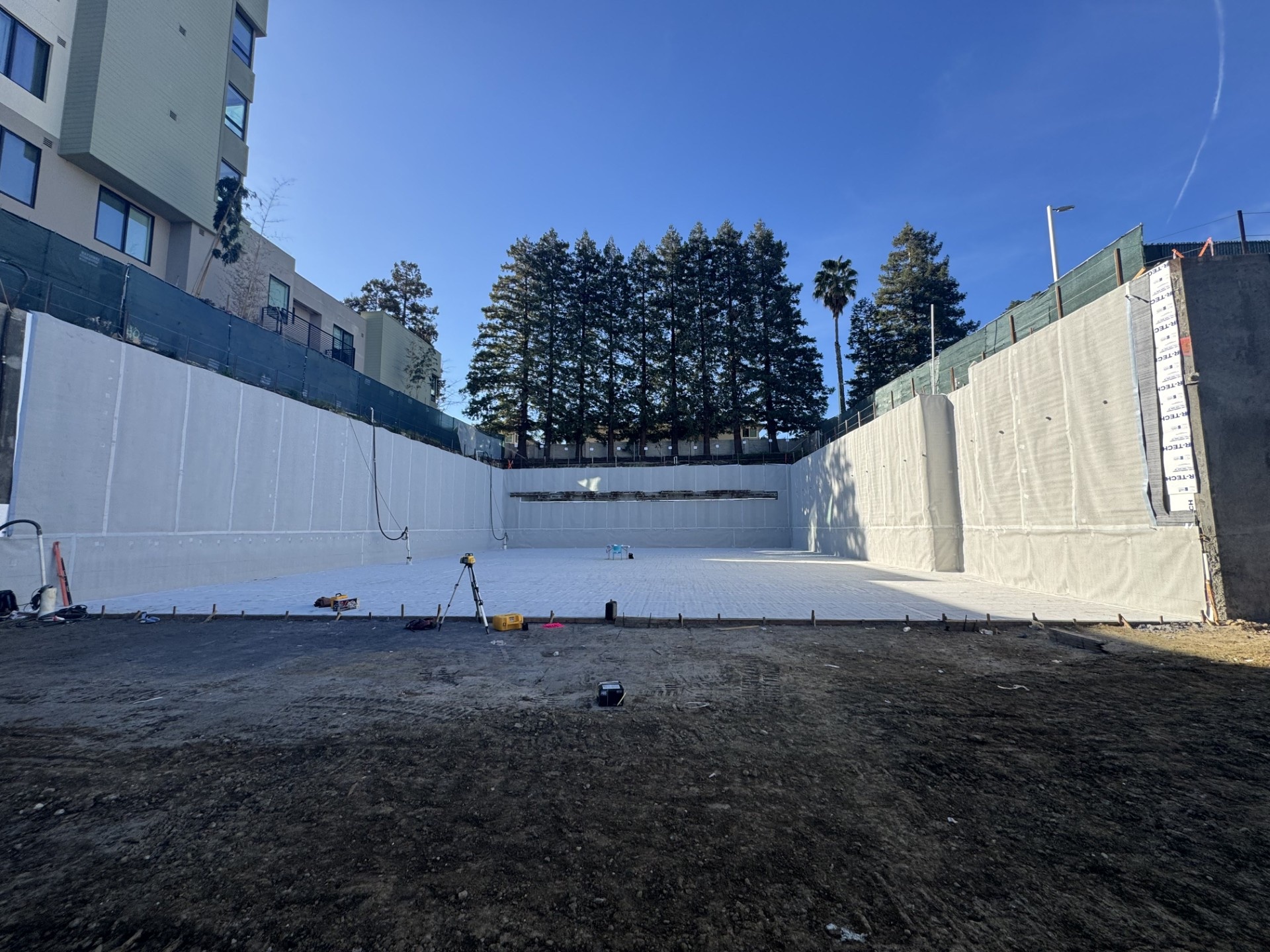

Vertical wall waterproofing application on retaining wall at construction site

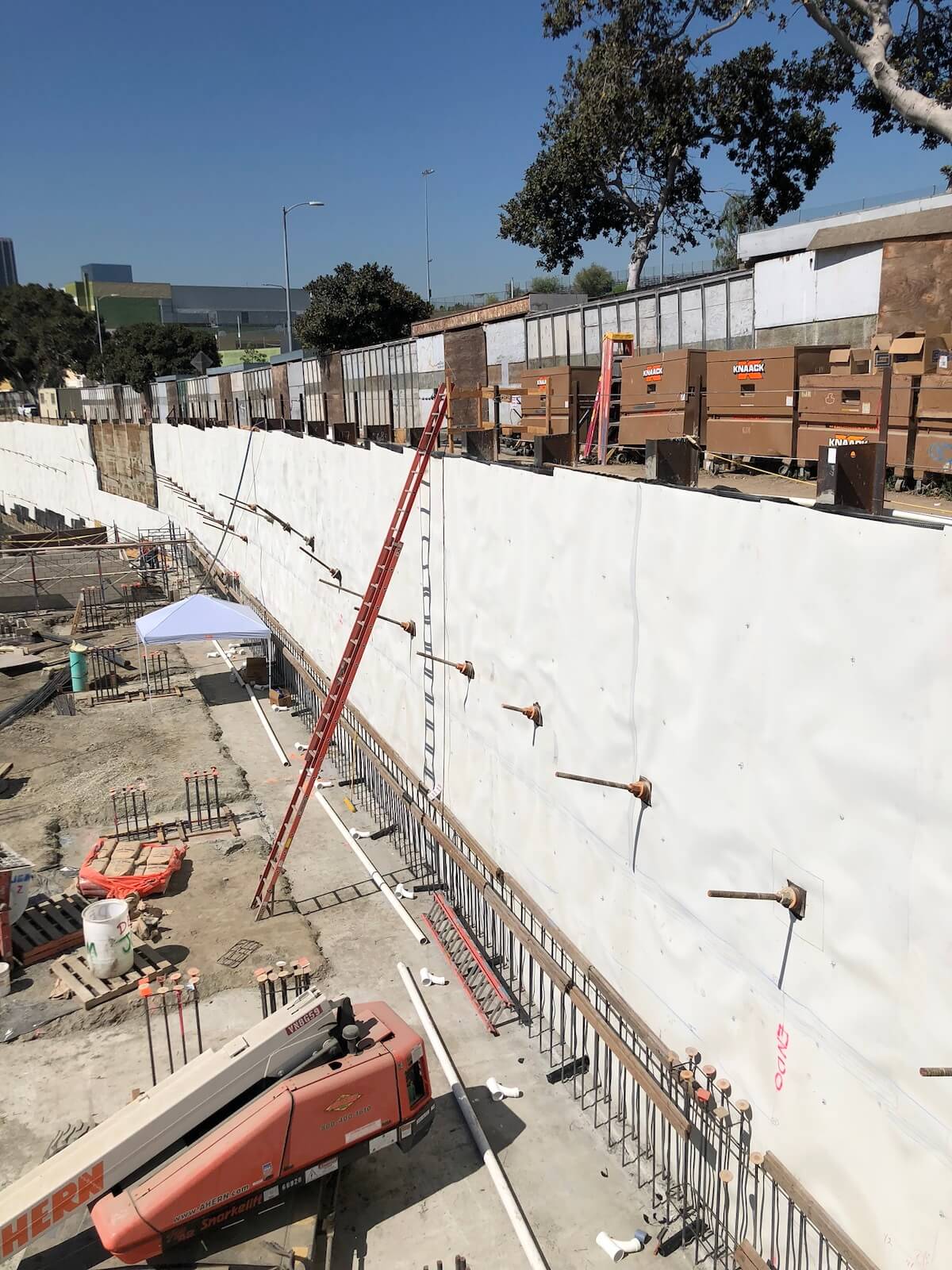

Blindside waterproofing membrane installed on deep foundation wall before concrete placement

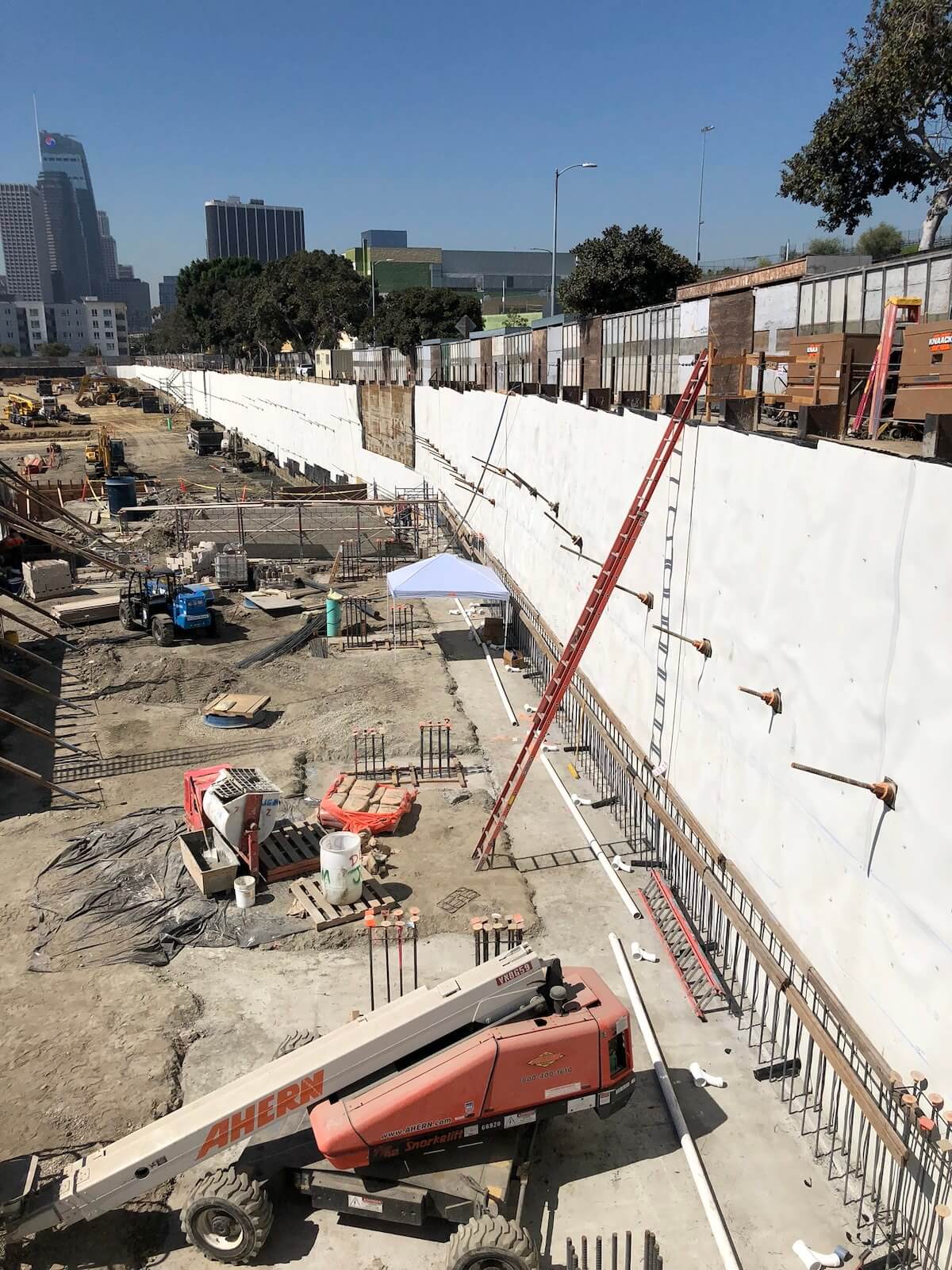

Below-grade excavation with vertical waterproofing system applied to shoring wall

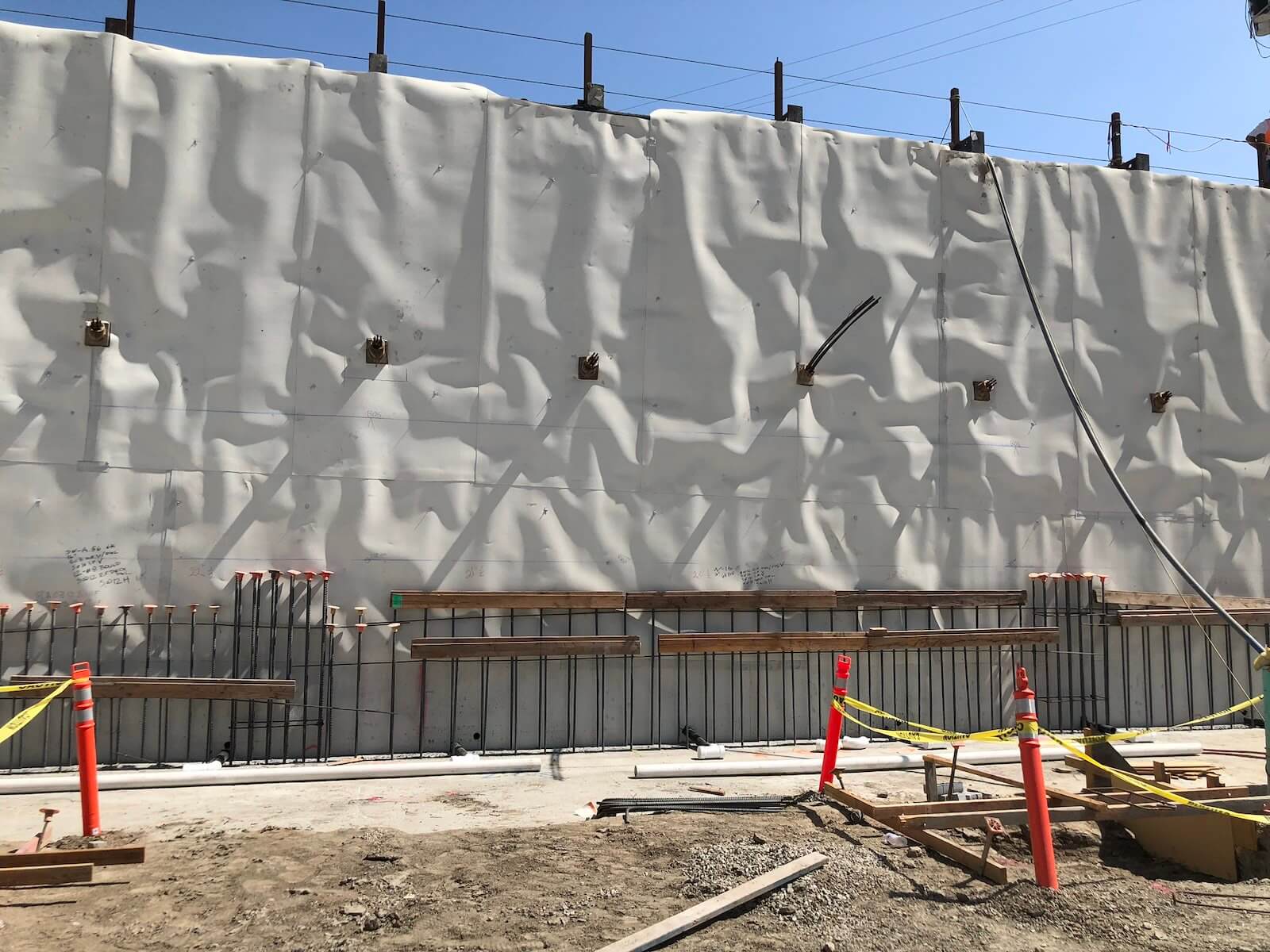

Close-up of blindside waterproofing membrane with tiebacks and wall penetrations

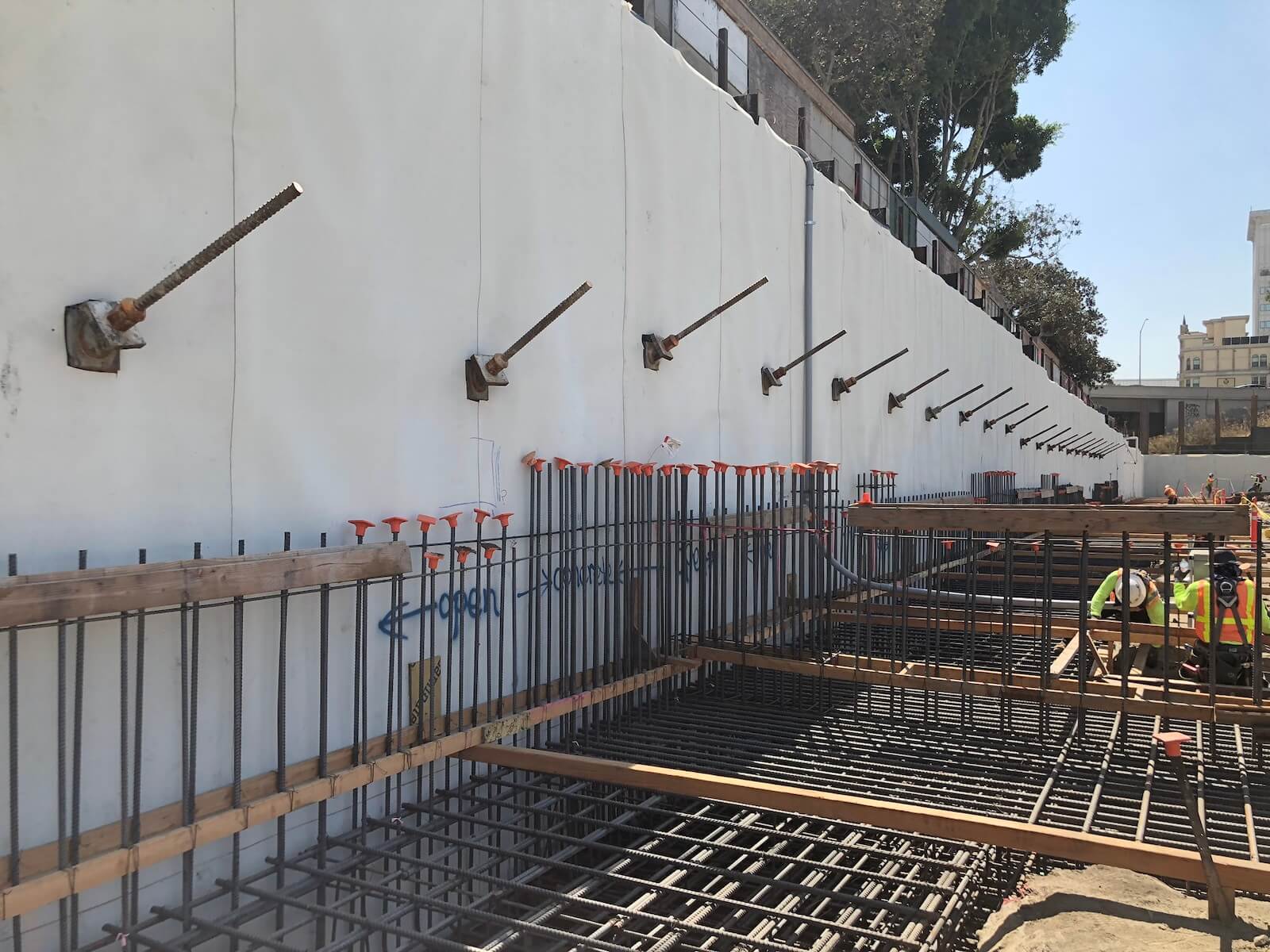

Foundation wall preparation with waterproofing system and rebar installation

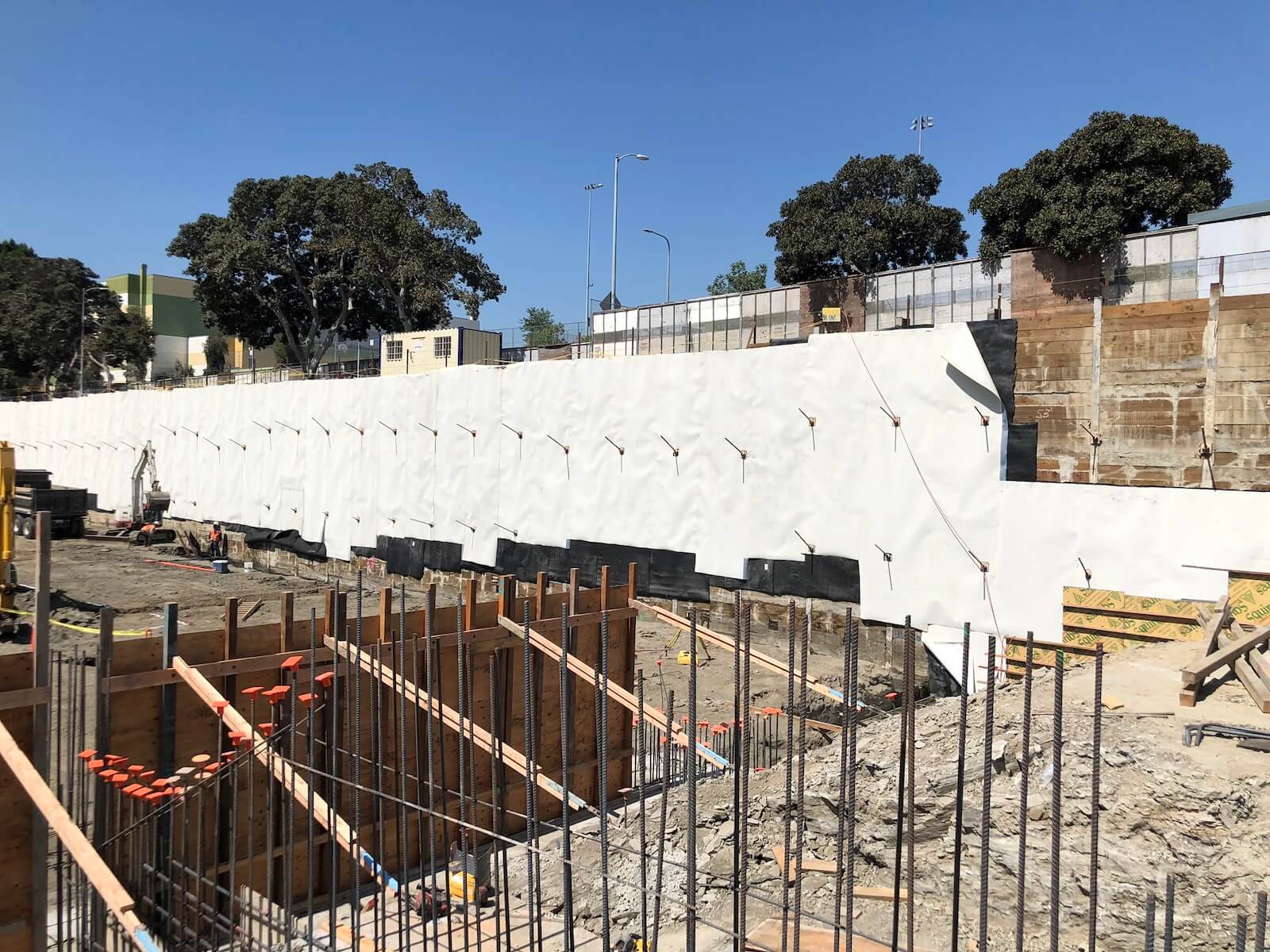

Aussie Skin 560G blindside waterproofing membrane applied to below-grade foundation wall
